Plunger Check Valve
Plunger Check Valve
- Detail
- Parameters
□ Introduction
Piston check valve is used in commercial refrigeration system, residential air conditioning and commercial air conditioning systems. Piston can be self - closed and seal, and come up with maximum capacity and minimum pressure drop.
□ Feature
Piston to guarantee one way direction and prevent backflow.
Damping spring inside the valve to make sure valve can be installed in variant status.

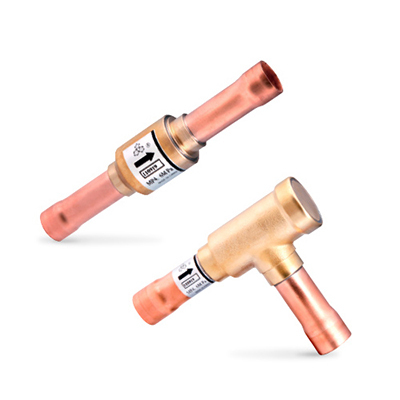

Straight in line or L type for inlet and outlet tube, easy to install.
Refrigerant ：R22, R407C, R410A etc.
Media temperature：-50°C ~+140°C
Maximum operation pressure：4.6MPa (46 bar)
□ Technical Parameter
PN | TYPE | TUBE | LIQUID REFRIGERANT （KW） | Min open pressure difference | C | E | |
（inch) | (mm) | (m³/h) | （KPa) | (mm) | (mm) | ||
SSP-S008/5 | straight | 1/4 | 6 | 0.56 | 5 | 90 | 18 |
SSP-S008/8 | straight | 3/8 | 10 | 1.43 | 5 | 110 | 18 |
SSP-S008H/8 | straight | 3/8 | 10 | 1.43 | 15 | 110 | 18 |
SSP-S008/10 | straight | 1/2 | 12 | 2.1 | 5 | 130 | 22 |
SSP-S008H/10 | straight | 1/2 | 12 | 2.1 | 15 | 130 | 22 |
SSP-S008/13 | straight | 5/8 | 16 | 3.9 | 5 | 140 | 28 |
SSP-S008H/13 | straight | 5/8 | 16 | 3.9 | 15 | 140 | 28 |
SSP-S008/17 | straight | 3/4 | 18 | 5.5 | 5 | 165 | 34 |
SSP-S008H/17 | straight | 3/4 | 18 | 5.5 | 15 | 165 | 34 |
SSP-S008/17-1 | straight | 7/8 | 22 | 5.5 | 5 | 165 | 34 |
SSP-S008H/17-1 | straight | 7/8 | 22 | 5.5 | 15 | 165 | 34 |
SSP-S008/20 | L | 7/8 | 22 | 13.1 | 10 | 132 | 87 |
SSP-S008H/20 | L | 7/8 | 22 | 13.1 | 30 | 132 | 87 |
SSP-S008/26 | L | 1-1/8 | 28 | 19.0 | 10 | 196 | 123 |
SSP-S008H/26 | L | 1-1/8 | 28 | 19.0 | 30 | 196 | 123 |
SSP-S008/31 | L | 1-3/8 | 35 | 29.0 | 10 | 196 | 123 |
SSP-S008H/31 | L | 1-3/8 | 35 | 29.0 | 30 | 196 | 123 |
SSP-S008/31-1 | L | 1-5/8 | 42 | 29.0 | 10 | 196 | 123 |
SSP-S008H/31-1 | L | 1-5/8 | 42 | 29.0 | 30 | 196 | 123 |
