□ Introduction

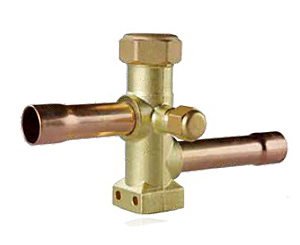

• Service valve mainly used on split air conditioning system, it is to connect the indoor and outdoor units. In maintenance, it is used to charge refrigerant or vacuum, and used in other cooling systems.

□ Features

• Valve core and valve body main thread high seal.

• Designed in compression connection without stop ring, cost saving and high safety.

□ Technical Parameter

• Refrigerant：R134a、R22、R407C、R410A、R32 etc;

• Maximum operation pressure：4.2MPa;

• Temperature ：-30℃~ +120℃



  PN	Nominal ID	B	A	C	D	Capacity
  	mm	mm	mm	mm	mm	KW	TR
  SSP-D010/8	7	9.52	52.5	27	12.5	2.5~5	0.71~1.43
  SSP-D010/10	10.5	12.7	80	40.5	18.5	2.5~12.5	0.71~3.57
  SSP-D010/13	13	15.88	80	40.5	23.4	4.25~12.5	1.21~3.57
  SSP-D010/16	16	19	80	40.5	18.5	7.5	2.14
  SSP-D010/20	19	22	88	44	20.8	12.5	3.57
